EFS07

---

The EFS07 Series high bay PIR sensor combines occupancy sensing with a photocell. When used with 0-10V dim-to-off LED drivers, it allows lighting manufacturers to offer sensor-equipped high bay fixtures with minimal engineering effort. It operates on 12V DC, supplied by the LED driver, which helps reduce OEM costs. Different modes can be selected for various applications using the RM51 IR remote controller. The integrated photocell provides dusk-to-dawn control, ensuring lights remain on overnight even without motion detection. In daylight harvesting mode, the auto-calibration function adjusts electric light levels based on the combined natural and electric light to maintain the desired illumination. It is compatible with SC01, SC02, SC03-AUX, BH4, BH4-W, and Z10 receptacles (ordered separately, Z10 by others).

---

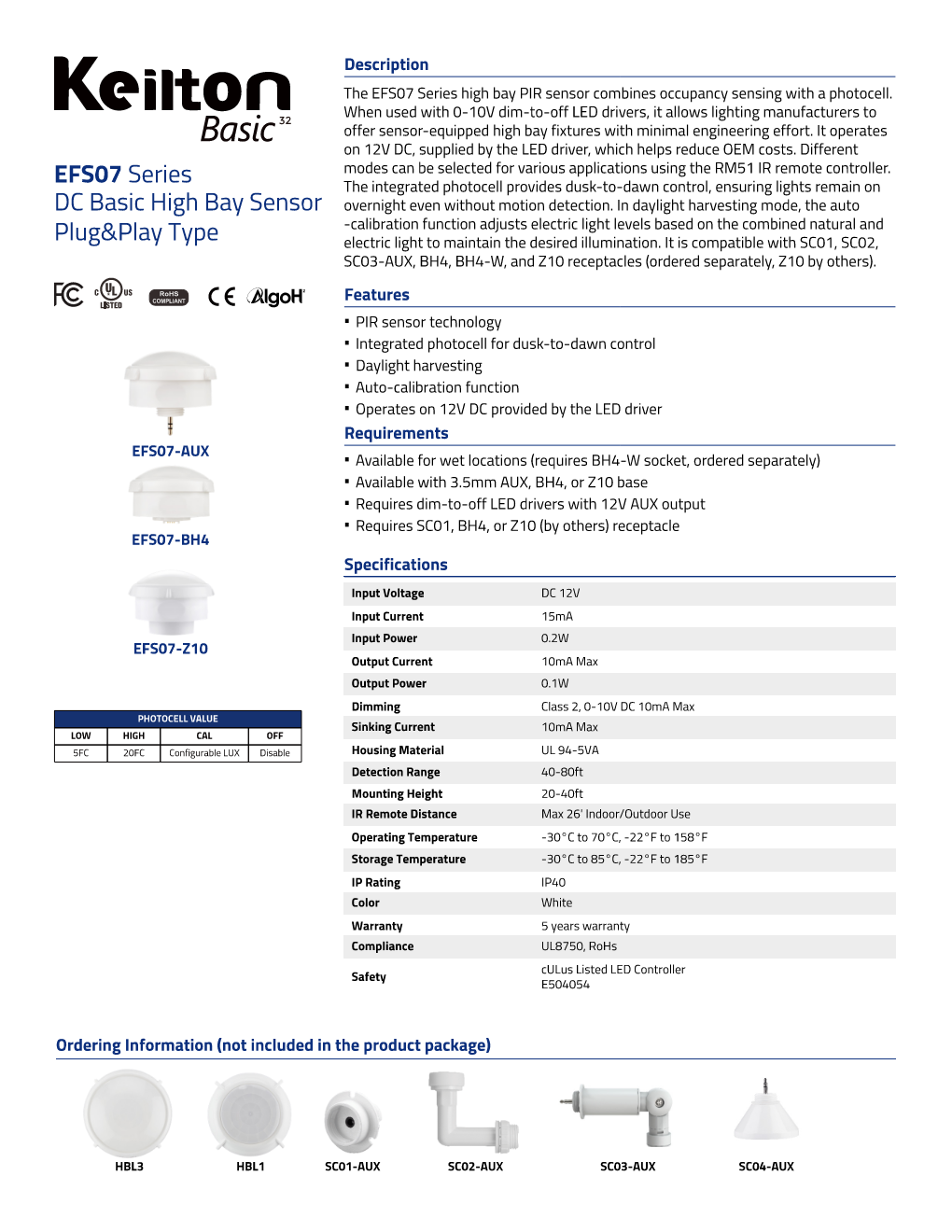

EFS07 Spec Sheet

---
